Carbide VSI Crusher Rotor Tip


Carbide strips and bars for cemented carbide crushers, also known as sand making machine wear-resistant blocks, are the core components of vertical impact crushers (sand making machines). The crusher hammer is equipped with tungsten carbide stripes to protect the VSI crusher rotor from wear. It is mainly used to break stone into sand. It is also widely used in mining, sand making, cement, metallurgy, hydropower engineering, ore processing and other industries.

Keywords: Metal Working/ Carbide Knife

For more information please e-mail or call our hotline

TEL:86-731-28814078

E-mail:info@eg-hardmetal.com

Online Inquiry

Product Details

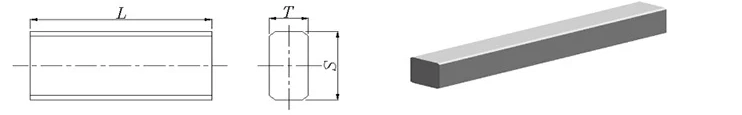

Model Dimention(mm) Original

model

Length Width

L

Width

T

Thickness

S

Chamfer

Approximate

weight (g)

TC10501220 50 12 20 1×45° 179 TX-08001

TC10521019A

52.5

10 19 1×45° 141 TX-07016
TC10551220 55 12 20 1×45° 190 TX-07015
TC10601223 60 12 23 1×45° 242 TX-09024
TC10601032 60 10 32 1×45° 276 TX-08003

TC11101220A

110.5 12 20 1×45° 390 TX-08004
TC11601223 160 12 23 1×45° 742 TX-08007
TC11441223 144 12 23 1×45° 570 TX-08006
TC11001223 100 12 23 1×45° 392 TX-08005
TC11001323 100 13 23 1×45° 445 TX-08013
TC11031323 103 13 23 1×45° 447 TX-09019
TC11051020 105 10 20 1×45° 309 TX-10020
TC11051323 105 13 23 1×45° 460 TX-08014

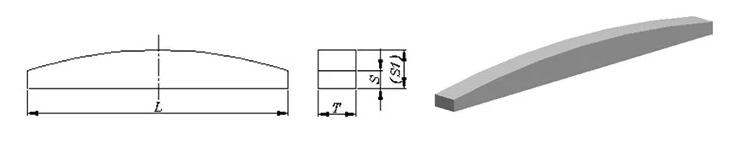

Model Dimention(mm) Original

model

Length Width

L

Width

T

Thickness

H

Bottom radian

U

Chamfer

Approximate

weight (g)

TC31882008 188 20 8.0 R406 1×45° 852 FX-09303
TC31882508 188 25 8.0 R406 - 1063 TX-09018
TC31901709B 190 17.5 9.5 R500 1×45° 761 FX-07031
TC31931507 193 15.0 7.0 R521.85 - 566.6 TX-09013
TC31901707A 190 17.5 7.0 R500 1×45° 639 FX-06074
TC32302308A 230 23 8.5 R1020 1×45° 998 TX-09021
TC32752308A 275 23

8.5

R987 - 1388 TX-10007

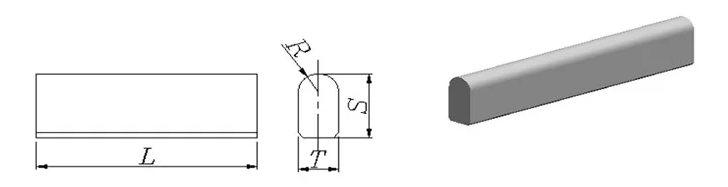

Model Dimention(mm) Original

model

Length Width

L

Width

T

Thickness

S

TOP radian

Chamfer

Approximate

weight (g)

TC40521018A 52.5 10 18 R15 1×45° 127 TX-08002
TC40521019A 52.5 10 19 R15 1×45° 132 TX-08017
TC40540918B 54.5 9.5 18 R5 1×45° 129 TX-09002
TC41051020 105 10 20 R5 1×45° 309 TX-07018

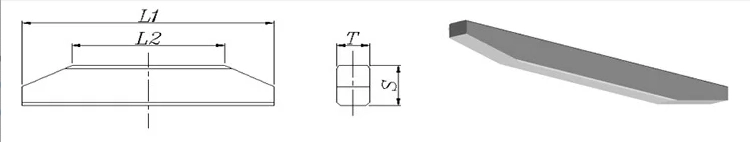

Model Dimention(mm) Original

model

Length Width

L1

Length Width

L2

Width

T

Thickness

S

Chamfer

Approximate

weight (g)

TC21851424 185 80 14 24 1×45° 687 TX-08008
TC21891323 189 110 13 23 1×45° 753 TX-08009
TC21891323 189 110 15 23 1×45° 890 TX-10019
TC22191423 219 118 14 23 1×45° 920 TX-10005
TC22201523 220 112 15 23 1×45° 1019 TX-10026

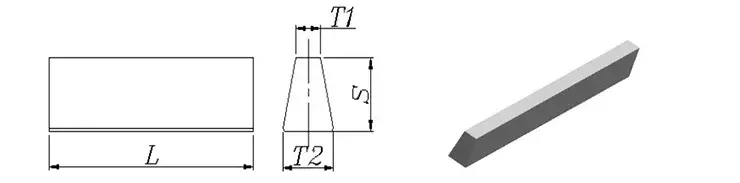

Model Dimention(mm) Original

model

Length

L

Width

T1

Width

T2

Thickness

S

Chamfer

Approximate

weight (g)

TC51201613 120 12 16 13 R3 448 FX-09037
TC51771725 177 14.8 17 25 1×45° 1100 EW-09002
TC52501320A 250 11.4 13.5 20 - 910 TX-09020
TC52601220 260 8 12 20 - 758 TX-09010
