Carbide Indexable Inserts


Carbide woodworking indexable knives are widely used in different tooling cutting industry. Varied specifications and grades are available. Besides, we can produce customized types.With sharp edges, precise dimensions and bright surface, suitable for different cutting heads and spiral planning cutter, such as: groove cutter, multi-function cutter, planing cutter spindle moulder and so on .Using the grade with submicron grain size improved the precision and the speed of processing with a long life time

Keywords: Metal Working/ Carbide Knife

For more information please e-mail or call our hotline

TEL:86-731-28814078

E-mail:info@eg-hardmetal.com

Online Inquiry

Product Details

Advantage :
1.100% virgin tungsten carbide make insert knife long lasted and more durable.
2. Providing superior smooth quality cuts every time.
3.Quick and precise replacements of dull knives.
4.Due to insert accuracy tool life is extended.
5.Special carbide grades for special applications.
6.Knives can be re-sharpened multiple times without affecting the original profile.

Grades For Carbide Indexable Inserts:

Grade Grain Size   μm Cobalt Content    (WT. %) Density Hardness T.R.S Recommended Application ISO code
g/cm3 HRA N/mm2
YG8 Medium 8% 14.8 90.5 2400 General wood , hardwood K20
YG6 Medium 6% 15 91 2300 General wood K20
EG08-H Fine 8% 14.7 91.2 2500 Hard wood K20
EG10-H Submicron 10% 14.5 91.8 3200 Hard wood K30
EG 07-H Submicron 7% 14.7 92.9 3000 MDF , HDF K10

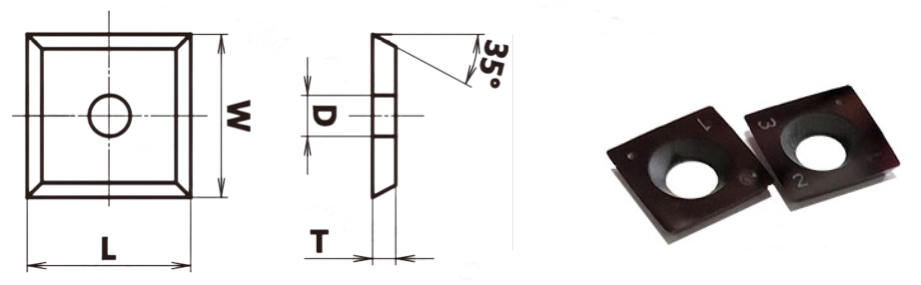

Product Specifications



L(mm) W(mm) T(mm) Bevel
12 12 1.5 35°
14 14 2 30°
14.6 14.6 2.5 30°
15 15 2.5 30°
15 15 2.5 R50 R100 R150
18 18 1.95









Item No L W T α
(mm) (mm) (mm)
7.5x12x1.5-ø4 7.5 12 1.5 30°/35°
8.6x12x1.5-ø4 8.6 12 1.5 30°/35°
9.6x12x1.5-ø4 9.6 12 1.5 30°/35°
10.5x12x1.5-ø4 10.5 12 1.5 30°/35°
15x12x1.5-ø4 15 12 1.5 30°/35°
20x12x1.5-ø4 20 12 1.5 30°/35°
25x12x1.5-ø4 25 12 1.5 30°/35°











Item No L W C T α
(mm) (mm) (mm) (mm)
25x12x1.5-ø4 25 12 14 1.5 30°/35°
30x12x1.5-ø4 30 12 14 1.5 30°/35°
40x12x1.5-ø4 40 12 26 1.5 30°/35°
50x12x1.5-ø4 50 12 26 1.5 30°/35°
60x12x1.5-ø4 60 12 26 1.5 30°/35°



Application
