Tricone drill bits for rock drill bit Oil Water Well Drilling
Classification:
Keywords: Metal Working/ Carbide Knife
For more information please Whatsapp or E-mail us
Product Details
Tricone bit used for geoloical prospecting,development of oil and gas,drilling water wells,blast holes and making holes for seismic prospecting,construction engineering.now there are eleven common types of tricone rock bits.
Steel teeth series:IADC CODE:116,117,126,127,136,137,216,217,317,337
TCI series:IADC CODE:417,437,447,517,527,537,547,617,627,637,647,737,837
TCI tricone bit, tci roller Bits ,roller bit,steel tooth roller bit,TCI roller bit,TCI tricone bit
1.Sizes rang from 3 7/8" to 26"
2.Covers almost all IADC code. 3.Reliable quality and reasonable price
| IADC | Pressure(KN/mm) | Drill speed (r/min) | Applicable strata |
| 417/427 | 0.3-0.9 | 150-70 | Very soft strata have low compressive strength and high drillability, such as mudstone, gypsum, salt, soft shale,soft limestone, etc. |
| 437/447 | 0.35-0.9 | 150-70 | |
| 515/525 | 0.35-0.9 | 180-60 | Soft strata have low compressive strengthand high drillability, such as mudstone, gypsum, salt, soft shale,soft limestone, etc. |
| 517/527 | 0.35-1.0 | 140-50 | |
| 535/545 | 0.35-1.0 | 150-60 | Soft to medium-soft has low compressive strength, such as medium-soft shale, medium-soft limestone, medium-soft sandstone,forming medium-hard and hard grinding interlayer. |
| 537/547 | 0.4-1.0 | 120-40 | |
| 617/627 | 0.45-1.1 | 90-50 | High compressive medium-hard formation strength, such as hard shale, limestone, sandstone, dolomite,etc. |
| 637 | 0.5-1.2 | 80-40 | Hard strata have high compressive strength, such as sandstone,limestone, dolomite, gypsum, marble,etc. |
| 737 | 0.7-1.2 | 70-40 | Hard strata have high compressivestrength, such as hard limestone,dolomite, etc. |
| 827/837 | 0.7-1.2 | 70-40 | Extremely hard strata with high compressive strength and abrasiveness, such as hard limestone,dolomite, hard sandstone, chert, etc. |
Diameter:
| size | Steel tooth bit | TCl bit | |
| in | mm | Weight(kgs) | Weight(kgs) |
| 3 7/8 | 98.4 | 5 | 6 |
| 4 5/8 | 117.5 | 6 | 6.5 |
| 5 7/8 | 149.2 | 17 | 18 |
| 6 | 152.4 | 18 | 19.5 |
| 6 1/2 | 165.1 | 19 | 22 |
| 7 7/8 | 200 | 29 | 29.5 |
| 8 1/2 | 215.9 | 35 | 38 |
| 8 3/4 | 222.2 | 36 | 40 |
| 9 1/2 | 241.3 | 57 | 59 |
| 9 7/8 | 250.8 | 58 | 60 |
| 10 5/8 | 269.9 | 66 | 74 |
| 12 1/4 | 311.1 | 85 | 111 |
| 13 5/8 | 346.1 | 118 | 120 |
| 14 3/4 | 374.6 | 140 | 160 |
| 17 1/2 | 444.5 | 230 | 255 |
| 20 | 508 | 428 | 443 |
| 22 | 558.8 | 520 | 560 |
| 26 | 660.4 | 720 | 810 |

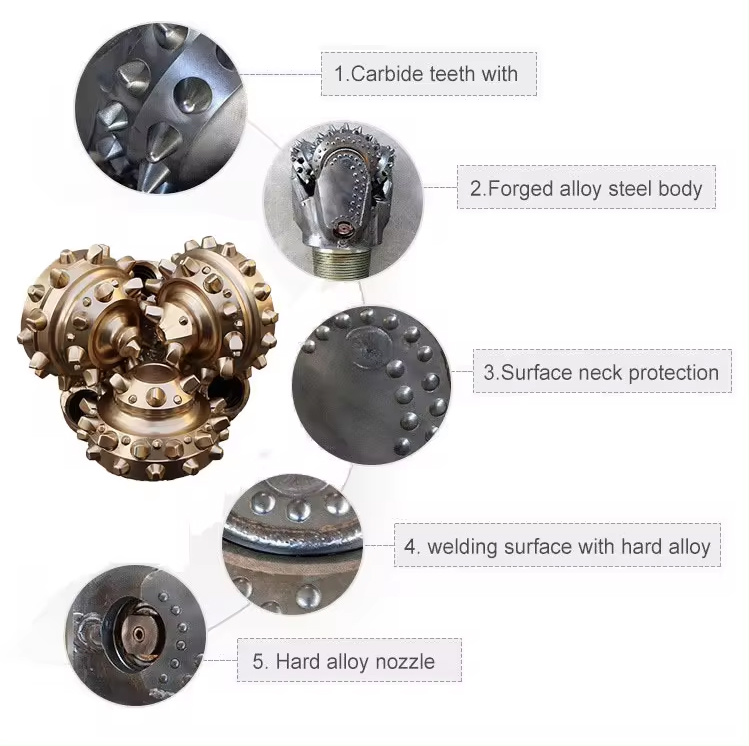

Our product advantages
