Cemented Carbide Solid Blanks
Dimensions: Metric or Imperial
Description: Long cemented tungsten carbide solid blanks (330 mm) with options on carbide grade, rod diameter, and finish.
Classification:
Keywords: Metal Working/ Carbide Knife
For more information please Whatsapp or E-mail us
Product Details
Solid carbide rods with Ultrafine grain size powders can give excellent performance on metal working, it owns sharp cutting edge and can maintain good performance during high temperature cutting.
Solid cemented carbide rods can be used for making end mills, various drill bits, automobile special cutter, engine special cutters, horology,processing special cutters, integral vertical milling cutter, graver and etc.
Large stock available for all standard ground and unground rods.
Ground - Open Tolerance Carbide Rods
*Your Evergreen salesperson is available to offer their expertise in selecting the high performance or application specific cemented carbide rod best suited to solve your needs. We offer both standard stock rods and rods customized to position you to win.
|
Size |
D (mm)L (mm) |
L (mm) |
Chamfer (mm) |
Tolerance Diameter (mm) |
Tolerance Length (mm) |
|
Minimum |
0.3 |
330 |
n/a |
0 / +0.15 |
0 / +6 |
|
Maximum |
100 |
330 |
n/a |
0 / +0.40 |
0 / +6 |
Ground - To ISO h6 Tolerance Carbide Rods
|
Size |
D (mm) |
L (mm) |
Chamfer (mm) |
Tolerance Diameter (ISO) |
Tolerance Length (mm) |
|
Minimum |
0.3 |
330 |
n/a |
h6 |
0 / +6 |
|
Maximum |
100 |
330 |
n/a |
h6 |
0 / +6 |
Available Cemented Carbide Grades
|
Classification |
Grade |
Cobalt Content |
Hardness (hra) |
Hardness (hv30) |
Density Glcm |
GrainSize (um) |
TRS (N/mm2) |
Application Recommended |
| ULTRAFINE | EG06 |
6 |
93.8 | 1900 | 14.80 | 0.4 | 3900 |
Applicable to the hig hhardness material processing,including PCB drills,milling cutters andgravers. |
| EG09 |
9 |
94.0 | 2050 | 14.60 | 0.20 | 3900 |
Applicable to processing the hardness and difficult-to-machine materials,stainless machining and microcutter. |
|
| EG12 | 12 | 92.6 | 1760 | 14.12 | 0.4 | 4200 |
Special carbide material of high-speed milling, applicable to alloy steel(HRC50-60),stainless steel,non-ferrous metal, titanium alloy, super alloy etc. |
|
| EG10-T | 10 | 92.2 | 1730 | 14.43 | 0.5 | 3800 |
For generaluse ofhigh-speed milling and drilling, applicable to allay steel.stainless steel,castiron,non-ferrous metal,super alloy etc. |
|
| SUBMICRON | YL10.2 | 10 | 91.8 | 1600 | 14.45 | 0.6 | 3800 |
For generaluse of economic milling and drilling,applicable to alloy steel,stainless steel,non-ferrous metal,super alloy etc. |
| CD650 | 15 | 89.7 | 1380 | 14.05 | 1.0 | 4200 |
Suitable for diepunches, punching silicon steel sheetsorpunchingneedles,etc. |
*Contact your Evergreen salesperson for standard stock availability.

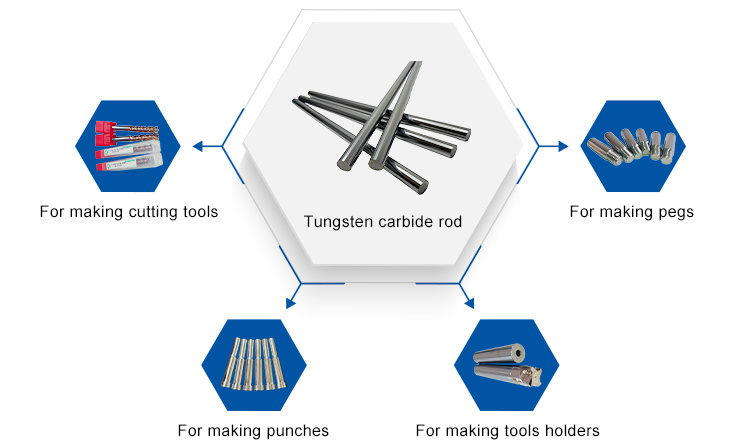

Application display
